IntelliWeb
‘Web is complex to manage because the margins are small and the investment are huge’
SAVE TIME
Reduce Makeready and Run time
HIT THE COLOR TARGETS
Consistent color, first time, every time
SAVE MONEY
Reduce paper waste
FROM DESIGN TO PRESS ROOM: An open solution for higher reactivity and rentability all along the workflow
STABILIZE & STANDARDIZE THE PROCESS at a corporate level, the same process on every press
USER FRIENDLY: Quick learning curve for press operators leads to faster and efficient production
STABILIZE & STANDARDIZE THE PRODUCTION Everywhere whatever the model of press (old or new). Higher profitability and efficiency, reduce rejected jobs from client
3 to 4 months
average return on investment
Maximum 20 ink units
Included:
Included:
On-Press Station: All-In-One Computer:
Stunning from every angle: 21.5" narrow bezel all-in-one desktop with Full HD and advanced manageability and security features with Touch function. 5260 AIO 21.5" FHD 1920x1080, Camera, Integrated Graphics, Bronze PSU
Processor
Intel Core™ i5-8500 (6 Cores/9MB/6T/up to 4.1GHz/65W)
Hard Drive
M.2 128GB SATA Class
20 Solid State Drive
Operating System
Up to Windows 10 Pro
64bit English
Graphics Card
Up to Intel® Integrated
Graphics
Memory
Up to 8GB 1X8GB DDR4 2666MHz Non-ECC
Software & License:
Included:
Color-Control
Rutherford IntelliSet includes a separate computer (the PreOPS) for automatically processing CIP or TIFF files sent from Prepress. The files are then sent to job folders in the PreOPS, ready for download upon selection by the press operators.
The system takes into account each individual key zone. If it is required create a uniform flatness on the sheet, all the fountain keys will not open in the same proportion. The IntelliSet software applies learned, individualized curves for each ink key to achieve this result. Repeated learning takes into account the aging of the press as well as paper type, to maintain pre-setting accuracy better than 90%.
Once the pre-setting step is completed, the focus is now on maintaining the right color throughout the run: it is the role of IntelliLoop in conjunction with X-Rite measuring devices to accomplish this.
When the press operator measures a press sheet, data is sent to IntelliLoop, which proposes a correction that the operator has the choice to accept or reject.
The measurement data, fountain-key openings, and and proposed corrections appear very clearly to the operators, who know best which decision to make. The touch interface is simple and well thought-out for the press operator.
Features & Capabilities
IntelliPress2
Capability to manage white under-print on metallic foil Metpol and other substrate
Separate system server computer
CIP files for all presses sent to a single hotfolder in the system server computer, typically located in prepress department
Presetting system can use CIP3, CIP4, JDF, TIFF and VPS files
Learning feature in presetting system keeps a separate history file for each paper type; maintains a unique presetting curve for every key on the press
Preset accuracy reports viewed remotely with a web browser
Rollback feature—Can roll back to the ink-key openings associated with any previous scan
Density targets can be assigned to individual or groupings of keys on any color while a job is being run. Resets to defaults when new job is set up
Density-range bar-graph screen—Shows range of densities across each fountain for each scan (Good for system performance review)
Jobs can be recalled to review system performance
New:Optional RG-MultiView display on large format monitor. All system apps shown simultaneously and in real time.
New:Optional RG-Proof—for viewing HD proof at the system touchscreen for verification and content proofing
New:Optional RG-Dashboard—Displays real-time trending of Density, Delta-E, X-Bar, and Range charts for multiple presses simultaneously on remote large screen; wireless connection
New:Optional RG-Light Stack—Colors light up to show various statuses: when it's time to scan and pass-fail threshold alerts
Reads all key openings and sweeps immediately after a scan—manual moves at press console do not affect system key-move accuracy
Display actual key openings and sweeps in percentages
Operator can preview what the new key openings will be after a scan; can accept or reject such moves
Adjustable color correction strengths for makeready and production modes; selection is automatic
Preview Presets—Transparent bar graph overlaid on plate image. Sweep values are also shown
Included:
IntelliPack
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Automatic or manual command
✓
✓
✓
✓
✓
X
Prepress drops files into separate hotfolders, located at each press
✓
X
Only the key openings from the most recent scan are shown
Density target changes apply to all keys across the fountain selected
X
X
X
X
X
X
Automatic or manual command
✓
✓
✓
✓
X
✓
Be sure that everything is under control
Optimize the timing of your measurements for quality color management and stability of production.
High-visibility colored lights are activated to show quality status
How it works?
Green light
To indicate when a user-set percentage of all patches on a color bar are within tolerance.
Included:
Orange light
To alert the operator to do a scan after a user-set time interval between scans.
Included:
Red light
To indicate when a user-set percentage of all patches are outside of tolerance or if no measure has been done for too long.
Included:
Add on
Ultra-Fast Automated Press-Side Color Control
Shorter runs. Faster turn times. Accurate, consistent color. In order to remain competitive, printers and packaging converters must address these market trends. Reducing make-ready time and waste, and minimizing errors and rework, are critical to profitability. Managing color by eye and/or depending on ink density measurements will not deliver against these requirements. By introducing next-generation color measurement instruments into the press-side quality control process, printers and packaging converters can assure optimum color quality, fast make-ready and reduced waste.
Benefits:
Reduced make-ready time and waste. IntelliTrax2 reports results on screen instantly so press operators can quickly make adjustments, even before color drift is visible to the human eye.
Full Range of Color Measurements. In less than 10 seconds, IntelliTrax2 measures process colors, spot colors, PANTONE® colors, paper color, tone value increase, gray balance and ink
density.
Non-Contact Instrument. No need to worry about smudging or scratching the image during the measurement process.
Support for industry standards. IntelliTrax2 software supports the majority of global graphic arts standards, including M1 to accommodate optical brighteners, M3 for measuring wet ink and full support for GRACoL, SWOP 2013, PSO, and FOGRA 51 and 52.
End-to-End Color Workflow. IntelliTrax2 can directly access the PantoneLIVE database for accurate spectral target values for corporate and other spot colors and can exchange job data with ColorCert: X-Rite Edition for statistical process control.
IntelliTrax2 links to other X-Rite IntelliTrax systems across the plant or across multiple sites, providing up-to-date centralized job information and color standards as well as exceptional inter-model agreement with the X-Rite eXact handheld spectrophotometer.

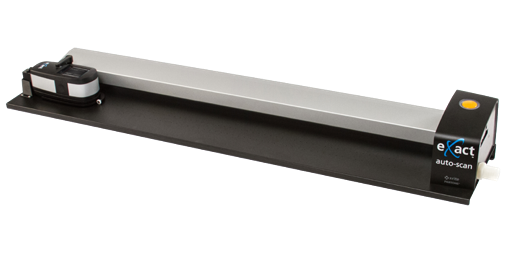

IntelliTrax2
by
eXact
auto-scan
by
One Instrument, Ultimate Flexibility.
Cut your make ready time by more than 30%.
With a push of a button, the eXact Auto-Scan minimizes human error when scanning to maximize speed, reduce rework, and deliver a finished product that meets your customers tight tolerances.
Improve Color Quality
Enhances spot color handling with creation and management of standards and color libraries on your device
Reduces variance among your instruments and verifies and/or profiles your device anytime on site with the addition of NetProfiler software.
Reduce Material Waste
Fast, press-side, fully-automated capabilities (readings under 15 seconds), results in a reduction in waste and increased profitability
Increases workflow productivity by running jobs to specific targets and standardizing your production process
Provides immediate, comprehensive reporting of color data through Bluetooth technology, allowing you to make prompt adjustments to the press run.
Expand Your Workflow
Integrates with closed loop solution such as Rutherford Graphic Products to deliver the best solution for ink key control adjustments.
Incorporates into your current workflow;
QUICK COMPARE
eXact Auto-Scan
IntelliTrax2
Aperture
Battery
BestMatch Feature
Closed Loop Support
Color Bar Alignment
Color Differences
Color Spaces
Configuration Options
Connectivity
Density Range
Density Standards
Embedded NetProfiler Support
Experience Level
G7 Certification
Humidity
Illuminants
Import/Export Format
Industry Standards
Instrument Display
Inter-Instrument Agreement
Light Source
Measurement Geometry
Measurement Spot
NetProfiler Support
Observers
Operating Temperature Range
Patch Size
Sample/Measurement
Scan Length
Short Term Repeatability Density
Single Pass Scan
Software Development Kit
Spectral Analyzer
Spectral Range
Spectral Reporting
Standards
Track Sizes
Voltage
Warranty
What’s Included
eXact Auto-Scan supports 1.5mm & 2mm
Lithium Ion, 7.4VDC, 2200mAh
Yes
Yes
Laser
CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994)
CIE L*a*b*, CIE L*C*h°, CIE XYZ and Yxy
NetProfiler
USB 2.0, Bluetooth
0.00 D – 3.00 D
Status A, E, I, T and G
Press Operators, Print Quality Managers interested in controlling color throughout the workflow and reducing make-ready waste.
Yes with embedded G7, PSO, JapanColor job templates
30% to 85% RH (non-condensing)
A, C, D50, D55, D65, D75, F2, F7, F11, D12
CxF3, SDF, SVF, TVF
ISO 5-4:2009(E), ISO 13655:2009
Color touch-screen, 320 x 240 pixels
0.3 dE*ab
Gas filled tungsten (illuminant type A) and UV LED
45°:0° ring illumination optics, ISO 5-4:2009
eXact Auto-Scan supports 1.5mm & 2mm
Yes
10°C to 35°C; 50°F to 95°F
3mm minimum with 1.5mm aperture
Max 5,000 samples on the eXact
29" (74 cm) or 40"(102 cm) maximum length depending on track size
+/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D).
Yes
Yes
DRS Spectral Engine
400 nm to 700 nm
400 nm to 700 nm with 10nm interval
More than 20,000 standards (incl. data for all M modes); New Color Library Tool to Create and Store Standards.
29" (74cm) or 40"(102cm)
12 VDC @ 2.5 A
1 year
Track, power supply, interface cables, eXact Standard or Advanced with Scan and BlueTooth (if purchased), InkKeyControl software (if purchased) and documentation, guide, carrying case, device certificate
Yes
Yes
Yes
CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994)
CIE L*a*b*, CIE L*C*h°
Head type, track length, aperture, Handheld, foot switch
Ethernet
0.0 D – 3.0 D
Status A, E, I, T, Tx, Ex, Hi-Fi
Yes
Yes
30% to 85% RH (non-condensing)
A, C, D50, D55, D65, D75, F2, F7, F11, D12
CxF3, jtl, cbl,
ISO 5-4:2009(E), ISO 13655:2009
0.3 dE*ab
Gas filled tungsten (illuminant type A) and UV LED
45°:0° ring illumination optics, ISO 5-4:2009
Yes
2° and 10°
10°C to 35°C; 50°F to 95°F
Small: 2 mm x 3 mm
Medium: 3 mm x 3 mm
Polarizer: 3 mm x 3 mm
29" (74cm)
32" (81cm)
40"(102cm)
44” (112cm)
56" (142cm)
65" (165cm)
On White: ± 0.01 D max.
Cyan, Magenta, and Black:
± 0.02 D @ 1.8 D
Yellow:
S/M: ± 0.02 D @ 2.0 D
Polarizer: ± 0.03 D @ 1.8 D
M0/M1 or M0/M3 or M1/M3
Yes
DRS Spectral Engine
400 nm to 700 nm
400 nm to 700 nm with 10nm interval
29" (74cm)
32" (81cm)
40"(102cm)
44” (112cm)
56" (142cm)
65" (165cm)
100 - 240VAC, 50/60Hz
1 year
Vacuum pump, Cabling, Power supply, Ethernet cable, Software CD, Manuals, device certificate
